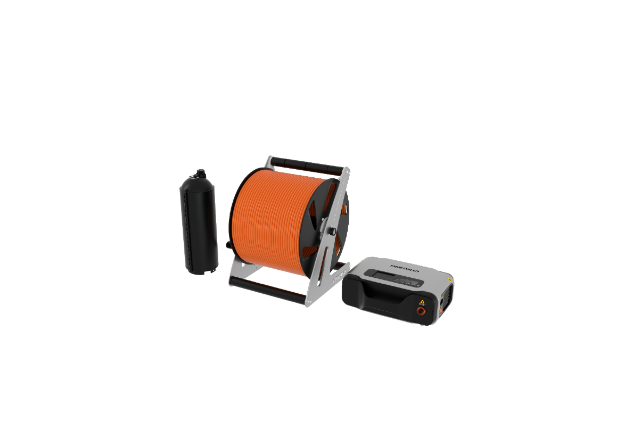

Shorebase Power Supply System 200M

Manufacturer: CHASING
Contact Us
The maximum output power of CHASING Shore-based Power Supply System (C-SPSS) is 1,500W, which is sufficient for the output power of 5 accessories at the same time, enabling 24/7 operation and greatly improving the operation efficiency.
+ -

Continuous Power Supply, 24/7 Operation

The maximum output power of CHASING Shore-based Power Supply System (C-SPSS) is 1,500W, which is sufficient for the output power of 5 accessories at the same time, enabling 24/7 operation and greatly improving the operation efficiency.

Long-Distance Power Supply to Realize Unrestricted Operation

CHASING Shore-based Power Supply System is available in 100m or 200m cable for power transmission. The high-power cable is able to withstand up to 250kgf. With more firm and reliable characteristics, it can ensure safe operation even in harsh water environment.

Easy to Install, Plug-and-Play

CHASING Shore-based Power Supply System is designed with a battery compartment, which is easy to install, plug-and-play, and started up quickly.

Efficient Security, Multiple Protection

Armed with a multiple protection system, including leakage protection, overcurrent protection, undervoltage protection, overvoltage protection, short circuit protection and high temperature protection, the C-SPSS can guarantee the safety of users in operation.

Easy to Take, Comprehensive Protection

Equipped with CHASING advanced trolley case which is of protective structure at military police grade, light and portable, and convenient for storage.

specification

  • Power Supply Box

    • Size

      • 230 x 315 x 118 mm
    • Weight

      • 3.9kg
    • IP Level

      • IP21
    • Operating Temperature

      • -10℃ - +50℃
    • Moisture

      • 5-95% of relative humidity, no condensation
    • LCD Screen

      • Resistive touch screen
      • Resolution: 320 x 240
      • Size: 2.8 inch
    • Network Port Rate

      • 10/100Mbps
    • Input Parameter

      • 100-125VAC 50/60HZ, 15A MAX
      • 200-240VAC 50/60HZ, 10A MAX
    • HV Port Output Parameter

      • 490VDC, 2000W MAX@220V~
      • 490VDC, 1500W MAX@110V~
    • RC Port Output Parameter

      • 24VDC, 50W MAX
    • Efficiency

      • ≥92%



  • HV tether Cable

    • Length

      • 100m / 200m (determine according to actual specification)
    • Weight

      • 35g/m
    • Operating Temperature

      • -10℃ - +50℃
    • Diameter

      • Φ7.2mm
    • Tensile Capacity

      • 250kgf
    • Tether

      • +5 - 10g (in fresh water)
    • Wire Gauge

      • 27awg (yellow & white) 20awg (red & black)
  • HV Reel

    • Size

      • 321 x 380 x 342 mm
    • Weight (without cable)

      • 4.4kg
    • IP Level

      • IP54
    • Operating Temperature

      • -10℃ - +50℃
    • nput / Output Parameter

      • 490VDC, 4.1A MAX



  • Power Supply Bin

    • Size

      • Φ120 x 360mm
    • Weight

      • 2.7kg
    • IP Level

      • IP68, 200m withstand voltage
    • Operating Temperature

      • -10℃ - +50℃
    • Input Parameter

      • 490VDC, 3.3A MAX
    • Output Parameter

      • 24VDC, 60A MAX
    • Efficiency

      • ≥93%

Packing list

  • Shore-based unit

    ×1

  • High-voltage reel

    ×1

  • ROV-based unit

    ×1

  • HV tether cable 5m

    ×1

  • RC tether cable 3m

    ×1

  • AC power cord 5m

    ×1

  • Insulating gloves

    ×1

  • Pull rod box

    ×1

  • O-ring

    ×4

  • Document package

    ×1

*
*
*
